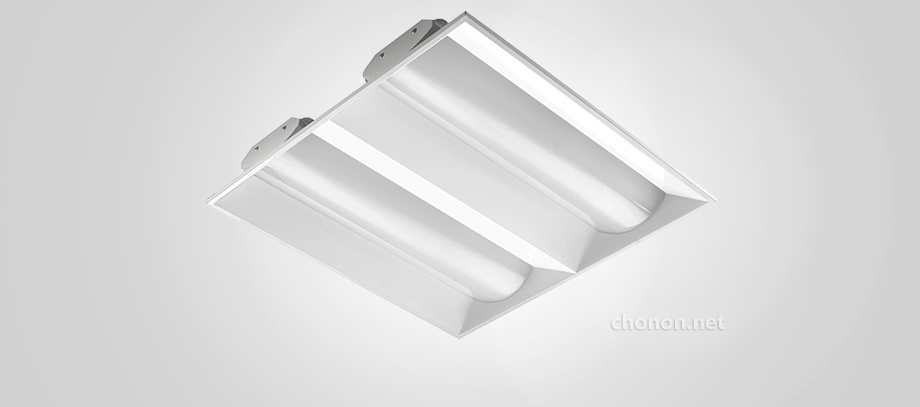

Features:
●Double PMMA opal diffuser in arc shape
●Body manufactured in cold-rolled steel with durable white powder coat finish
●LED options: Samsung as standard, and Philips, Osram & Epistar available on request
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available, Sensor and emergency batteries kit available on request
●Good color rendering of CRI>80
●Superior thermal performance of LED board, leading to a longer life
●Long working life with high efficiency for energy saving
Mounting: Recessed
Key Applications:
Office buildings, Bank, schools, universities, libraries, hospitals, etc.
Specification:
●Double PMMA opal diffuser in arc shape
●Body manufactured in cold-rolled steel with durable white powder coat finish
●LED options: Samsung as standard, and Philips, Osram & Epistar available on request
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available, Sensor and emergency batteries kit available on request
●Good color rendering of CRI>80
●Superior thermal performance of LED board, leading to a longer life
●Long working life with high efficiency for energy saving
Mounting: Recessed
Key Applications:
Office buildings, Bank, schools, universities, libraries, hospitals, etc.
|
Photometric: |
Drawing: |
 |
 |
Specification:
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQG-LED-218E |
596x596x70 |
36w |
3530lm |
3000-6500K |
>80 |
>0.9 |
65x65x19 |
2pcs |
|
MQG-LED-220E |
596x596x70 |
40w |
3870lm |
3000-6500K |
>80 |
>0.9 |
65x65x19 |
2pcs |
Other lengths, wattages and lumens are available on request.
