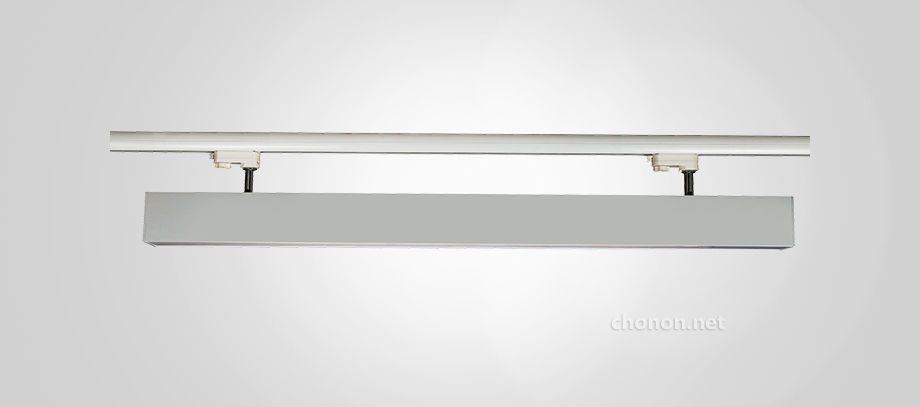

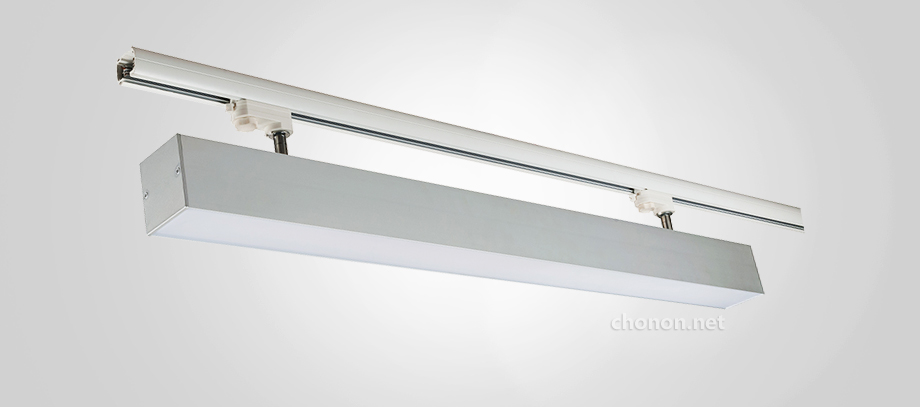

LED Linear Light for Track
Features:
●Premium aluminum housing, color powder coating is available
●High transmission opal diffuser
●Angle adaptable with track adaptor
●1-10V, DALI, DSI dimmable available
●For tracking system
Benefits:
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide and slightly deep light distribution for shadow less illumination
Key Applications:
Shopping Centers, Supermarkets, Hallways and Corridors, etc
Drawing:
Features:
●Premium aluminum housing, color powder coating is available
●High transmission opal diffuser
●Angle adaptable with track adaptor
●1-10V, DALI, DSI dimmable available
●For tracking system
Benefits:
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide and slightly deep light distribution for shadow less illumination
Key Applications:
Shopping Centers, Supermarkets, Hallways and Corridors, etc
Drawing:
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
|
MZJ-LED-136A (T3) |
1132x67x90 |
36w |
3240lm |
3000-6500K |
>80 |
>0.9 |
|
MZJ-LED-140A (T4) |
1142x80x90 |
40w |
3320lm |
3000-6500K |
>80 |
>0.9 |
|
MZJ-LED-140A (T5) |
1142x100x90 |
40w |
3520lm |
3000-6500K |
>80 |
>0.9 |
Other lengths, wattages and lumens are available on request.
