Features:

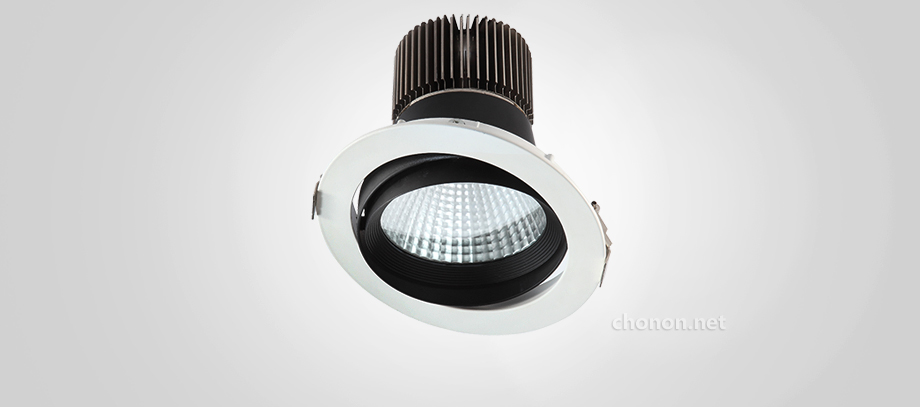

●Adjustable with 32° tilt and 355° rotation
●High efficiency aluminum reflector with glass

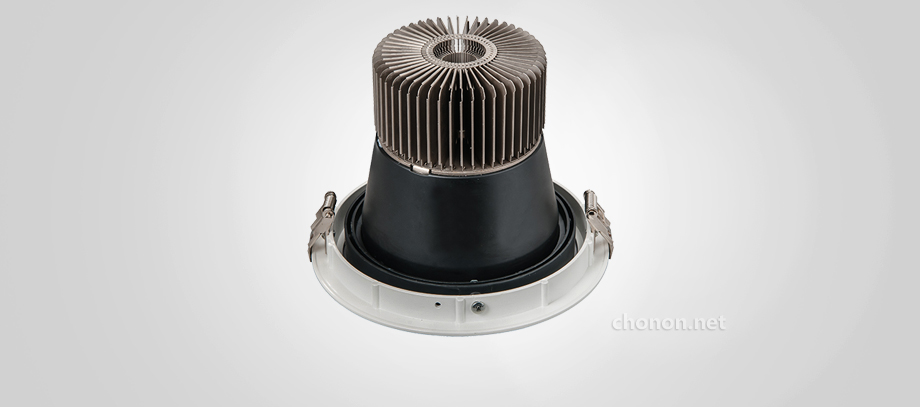

●Aluminum sheet heat sink in turbo shapes for fast cooling
●COB options: Citizen, Cree and Epistar
●Remote drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, hotels, reception rooms, exhibition, etc.
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Diameter ? (mm) |
Cutout ? (mm) |
Height (mm) |
Wattage |
Lumen @4000K (lm) |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQT-LED-0415N |
145 |
130 |
116 |
15w |
1350 |
3000-6500K |
>80 |
>0.9 |
48.5x33x28.5 |
12 |
|
MQT-LED-0525N |
175 |
160 |
130 |
25w |
2200 |
3000-6500K |
>80 |
>0.9 |
57.5x39x34.5 |
12 |
|
MQT-LED-0630N |
190 |
175 |
160 |
30w |
2700 |
3000-6500K |
>80 |
>0.9 |
62.5x42.5x41.5 |
12 |
|
MQT-LED-0836N |
235 |
220 |
180 |
36w |
3200 |
3000-6500K |
>80 |
>0.9 |
51x51x45.5 |
8 |
