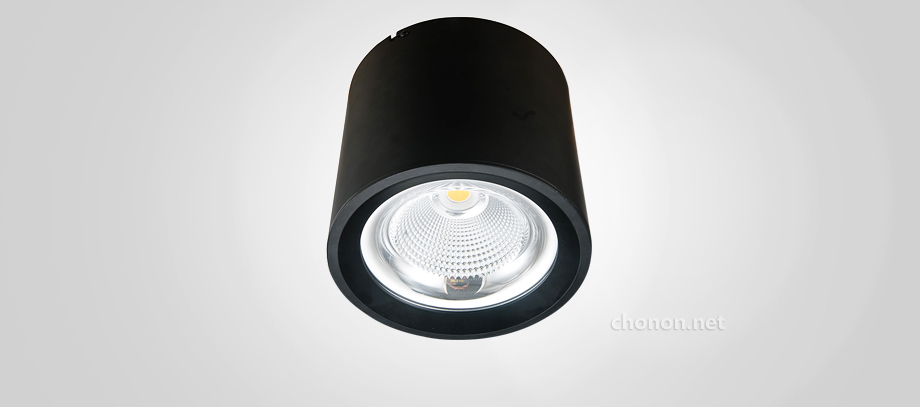

LED downlight-V Series/ Surface mounted
Features:
●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with PC cover
●COB options: Citizen, Cree and Epistar
●Drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
Installation:
Surface mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
Features:
●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with PC cover
●COB options: Citizen, Cree and Epistar
●Drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
Installation:
Surface mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Diameter ? (mm) |
Height (mm) |
Wattage |
Lumen @4000K (lm) |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQT-LED-0313V |
110 |
123 |
13w |
975 |
3000-6500K |
>80 |
>0.9 |
59.5x24.5x43 |
30 |
|
MQT-LED-0420V |
130 |
154 |
20w |
1700 |
3000-6500K |
>80 |
>0.9 |
55.5x28.5x50.5 |
24 |
|
MQT-LED-0529V |
170 |
182 |
29w |
2500 |
3000-6500K |
>80 |
>0.9 |
54x36.5x59 |
18 |
Other wattages and lumens are available on request.
