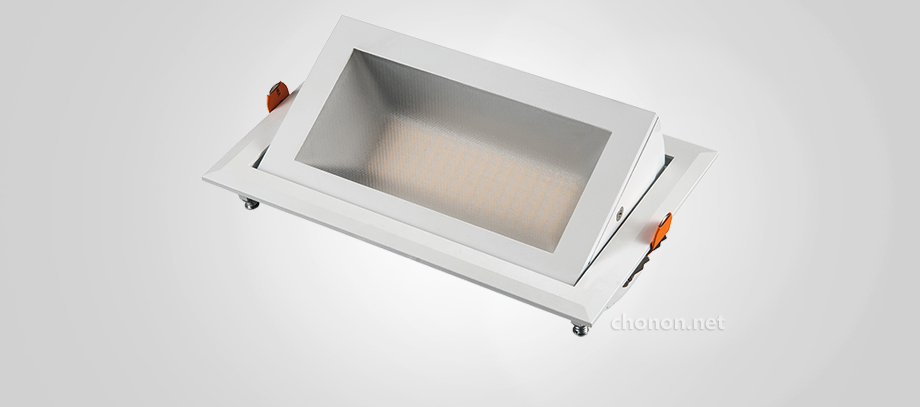

LED downlight-W Series/ Adjustable
Features:
●Rectangle downlight adjustable with 60° tilt and 355° rotation
●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with glass
●SMD chips options: Samsung LED or Epistar LED
●Remote drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
Installation:
Recess mounted
Key Applications:
Features:
●Rectangle downlight adjustable with 60° tilt and 355° rotation
●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with glass
●SMD chips options: Samsung LED or Epistar LED
●Remote drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, stores, exhibition, etc.
|
Photometric: |
Drawing: |
 |
 |
|
Product
Code |
Diameter
?(mm) |
Cutout
?(mm) |
Height
(mm) |
Wattage
|
Lumen@
4000K(lm) |
CCT(K)
|
CRI
|
Power
Factor |
Carton
Size(cm) |
Qty/ctn
(pcs) |
|
MQT-LED-0828W |
242x152 |
225x130 |
145 |
28w |
2700 |
3000-6500K |
>80
|
>0.9
|
50x54x34x38 |
8
|
|
MQT-LED-0834W |
242x152 |
225x130 |
145 |
34w
|
3300
|
3000-6500K
|
>80
|
>0.9
|
50x54x34x38 |
8
|
|
MQT-LED-0842W |
242x152 |
225x130 |
145 |
42w
|
4070
|
3000-6500K
|
>80
|
>0.9
|
50x54x34x38 |
8
|
|
MQT-LED-0848W |
242x152 |
225x130 |
145 |
48w
|
4600
|
3000-6500K
|
>80
|
>0.9
|
50x54x34x38 |
8
|
Other wattages and lumens are available on request.
